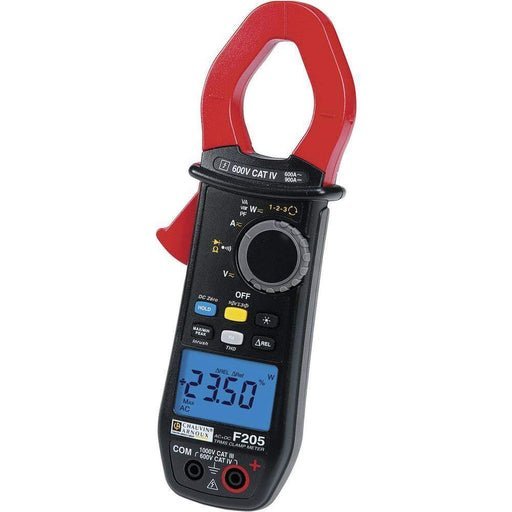

Chauvin Arnoux F205 : True RMS AC/DC Digital Power Harmonic Clamp Meter

Description

The F205 clamp is ideal for low and medium-power Low-Voltage applications, maintenance of tertiary or industrial electrical installations and troubleshooting and sizing of electrical power supplies.

Equipped with a fast 12-bit TRMS digital acquisition system, F205 clamps offer particularly accurate measurements whatever the signal’s type and waveform.

Specification

• Clamping diameter: 34 mm
• Current: 600 A AC / 900 A DC
• AC and DC voltage up to 1,000 V
• Resistance and audible continuity
• Power values (W, var, VA, PF) and harmonics (THDf, THDr)
• “2- wire method” phase rotation
• Automatic AC/DC detection
• TrueInrush current measurement
• Min, MAX, Peak+, Peak-
• RELative (ΔX) and differential (ΔX/X) measurements
• CAT IV 600 V
