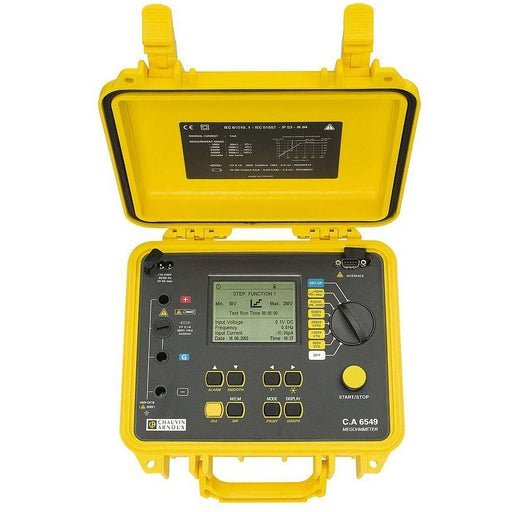

Chauvin Arnoux CA6549 Digital Insulation Tester, 5000V

Description

5000 V Digital Insulation Tester

In its site-proof casing, the C.A 6549 insulation tester offers quantitative and qualitative insulation analysis on a large backlit graphic screen.

Functions and specifications:
●  measurement range: 10 kΩ to 10 TΩ
●  4 fixed test voltages: 500 / 1,000 / 2,500 and 5,000V
●  adjustable test voltage position: 40 to 5,100V in 10V or 100V increments
●  step voltage mode: R(Utest) measurement curve viewed on the screen and gradient calculated automatically in ppm/V
●  DAR, PI and DD quality ratios calculated automatically
●  programmable test length and R(t) measurement curve displayed directly on the screen
●  after measurement with indication of measurement temperature, resistance recalculated at reference temperature for reliable and accurate insulation monitoring
●  many other functions: test voltage locking, smooth function, programmable alarms, etc.
●  storage of several thousand measurements
●  RS 232 connector for connection to PC or very compact serial printer
●  power supply: NiMH rechargeable battery for 30 days’ operation with 10 DAR measurements and 5 PI measurements per day
●  electrical safety: IEC 61010-1 Cat.III 1000V or Cat.I 2500V and 61557
●  dimensions: 270 x 250 x 180 mm; weight: 4.3 kg
