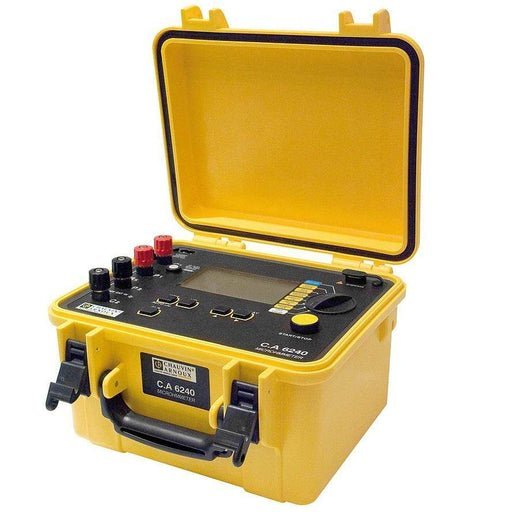

Chauvin Arnoux CA6240 Micro-Ohmmeter

Description

Rugged and leakproof, the C.A 6240 is a top-of-the-range product designed for on-site, workshop or laboratory use.

It is ergonomic, lightweight and compact.Its wide LCD screen comprising 2 digital displays is particularly easy to read. It includes indications intended to facilitate implementation and interpretation of the measurements. The automatic measurement mode allows measurement to be triggered without pressing a button.
An automatic recording mode is also available.

C.A 6240 technical specifications:
●  4-wire measurement method
●  measurement ranges from 400 µΩ to 400 Ω
●  Test current up to 10 A
●  Max. resolution 1 µΩ
●  Automatic power off
●  Power supply: NiMH rechargeable battery
●  Storage: 100 measurements
●  Communication via USB optical link
●  Data export software
●  IP53 protection
●  Electrical safety: IEC 61010-1 CAT III 50 V
●  Dimensions: 273 x 247 x 280 mm
●  Weight: 5 kg
