• extended range of applications
• energy efficient
• cost-effective power regulation
• wear-resistant drive mechanism
• quiet and low-vibration
• minimal space requirements
• robust

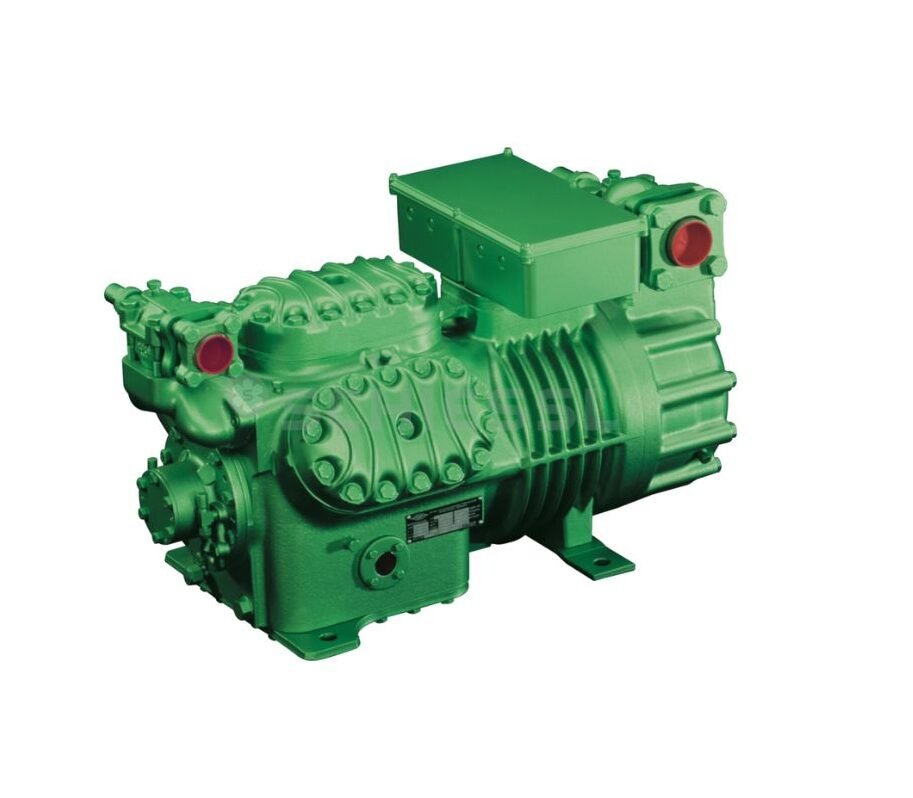

BITZER ECOLINE compressors for operation with frequency inverters up to 70 Hz
All BITZER ECOLINE compressors are designed and optimized for 70 Hz operation. Depending on the refrigerant used and the environmental conditions, a compressor with a PW standard motor (400 V, 3-50 Hz) can be used, or a special motor (230V/400V, 3-50 Hz*) may be required and connected in a delta circuit (230 V, 3-50 Hz). The latter is the case for compressors using version 1 and 2 motors where they are to be operated throughout the entire documented area.
The use of a PW standard motor for 400 V or the connection of a 230/400 V motor in a star circuit must be discussed with BITZER on an individual basis due to the drop in the torque value when operating above 50 Hz (fig 1) – see also Technical Information KT-420.
