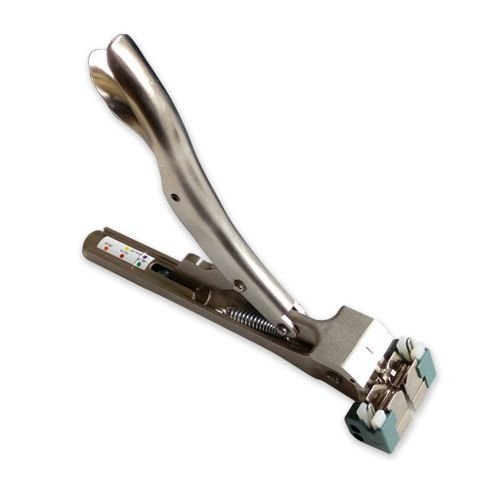

AMP MR1 Picabond Crimping Tool

Description

Model MR-1 Hand Crimping Tool 251101-1 is designed to crimp PICABOND Connectors in through, tapping, and bridging operations.

The tool can be hand-held or it can be used in Tool Holder 251852-1 with or without the Frame Adapter 229175-1.

Read the instructions packaged with these accessories.

The tool features two wire supports, a set of dies (anvils and crimpers), a wire cutter, and a handle assembly.
In use, the wire supports hold and position the wires in the crimpers. As the tool is cycled, the wire cutter cuts off excess wire, then the crimping dies crimp the connector to the wires. Continuous pressure applied to the moving handle forces the link to snap the tool handles closed, thus completing the crimp cycle. After the cycle is completed, depress the release lever to open the handles and remove the crimped connector.
