AKRON Apollo Dual-Inlet Portable and Deck Monitor, 2.5″ – 3423

Akron Apollo Monitors offer a variety of models with features to fit the ever increasing demands of the fire service with a durable, dependable and stable monitor.

Features

• 360? rotation when mounted in the deck mode, 180? in the portable mode

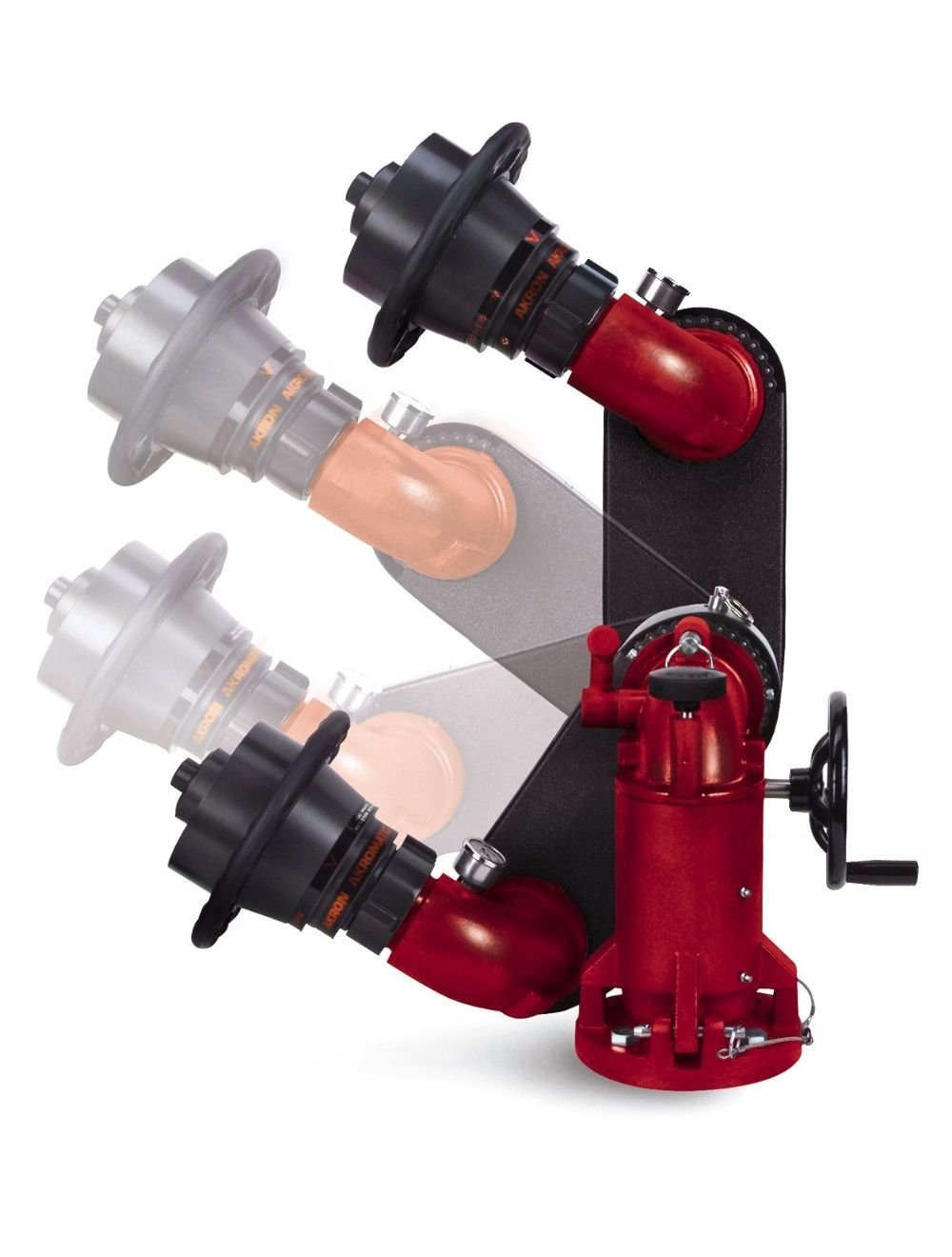

• Vertical travel from 90? above to 15? below horizontal, with built-in 35? safety stop
• 3″ waterway with cast-in turning vanes for efficient flow
• Direct mount – a combination 3″ NPT female and 3″ flange
• Carbide spikes for extended wear (Spike covers optional)
• Available as portable only or deck mount only – must specify

Specifications

• Portable ground base monitor with two 2 1/2″, or 3″ clappered swivel inlets.
• The base will have folding legs with no locking mechanism required to keep legs in place.
• The monitor shall have handwheel elevation control from 90? above to 15? below horizontal with an elevation safety stop at 35? above horizontal
• 360? continuous rotation when in the deck mode flowing 1250 gpm and 180? in the portable mode flowing 800 gpm, horizontal locking mechanism and stops to prevent accidental over-rotation
• A full 3″ waterway with cast-in turning vanes in each elbow.
• A 3″ NPT & 3″ flange combination deck mount shall be supplied.
• The monitor shall also include a pressure gauge, carry handle, grease fittings, safety chain, hardened steel ground spikes and Pyrolite? construction.
• Deck height not to exceed 12″, base weight: 32 lbs., liftoff weight: 23 lbs.
