POTTER OSYSU-1 Electric Supervisory Single Switch – DB-217-M
The OSYSU is used to monitor the open position of an OS& Y (outside screw and yoke) type gate valve. This device is available in two models; the OSYSU-1, containing one set of SPDT (Form C) contacts and the OSYSU-2, containing two sets of SPDT (Form C) contacts. These switches mount conveniently to most OS & Y valves ranging in size from 2″ to 12″ (50mm to 300mm). They will mount on some valves as small as 1/2″ (12,5mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device and should be left with the building owner or responsible party. Replacement or additional cover screws and hex keys are available.
*UL and CSFM Listed, FM Approved, NYMEA Accepted, CE Marked.
Specifications
| Dimensions |
6.19″L X 2.25″W X 5.88″H 15,7cm L X 5,7cm W X 14,6cm H |
| Weight | 2 lbs. (0,9 kg.) |
| Enclosure |
Cover – Die-Cast Finish – Red Spatter Enamel Base – Die Cast Zinc All parts have corrosion resistant finishes. |
| Cover Tamper | Tamper resistant screws, optional cover tamper kit available. |
| Contact Ratings |
OSYSU-1: One set of SPDT (Form C) OSYSU-2: Two sets of SPDT (Form C) 15.00 Amps at 125/250VAC 2.50 Amps at 30VDC resistive |
| Conduit Entrances |
2 knockouts for 1/2″ conduit provided |
|
Environmental Limitations |
NEMA 4 and NEMA 6P Enclosure (IP67) when used with appropriate watertight conduit fittings. Indoor or Outdoor use (Not for use in hazardous locations. See bulletin no. 5400705 OSYS-U-EX Temperature Range: -40?F to 140?F (-40?C to 60?C) |
Service Use
|
Automatic Sprinkler |
NFPA-13 |
| One or two family dwelling | NFPA-13D |
| Residential occupancy up to four stories | NFPA-13R |
| National Fire Alarm Code | NFPA-72 |
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

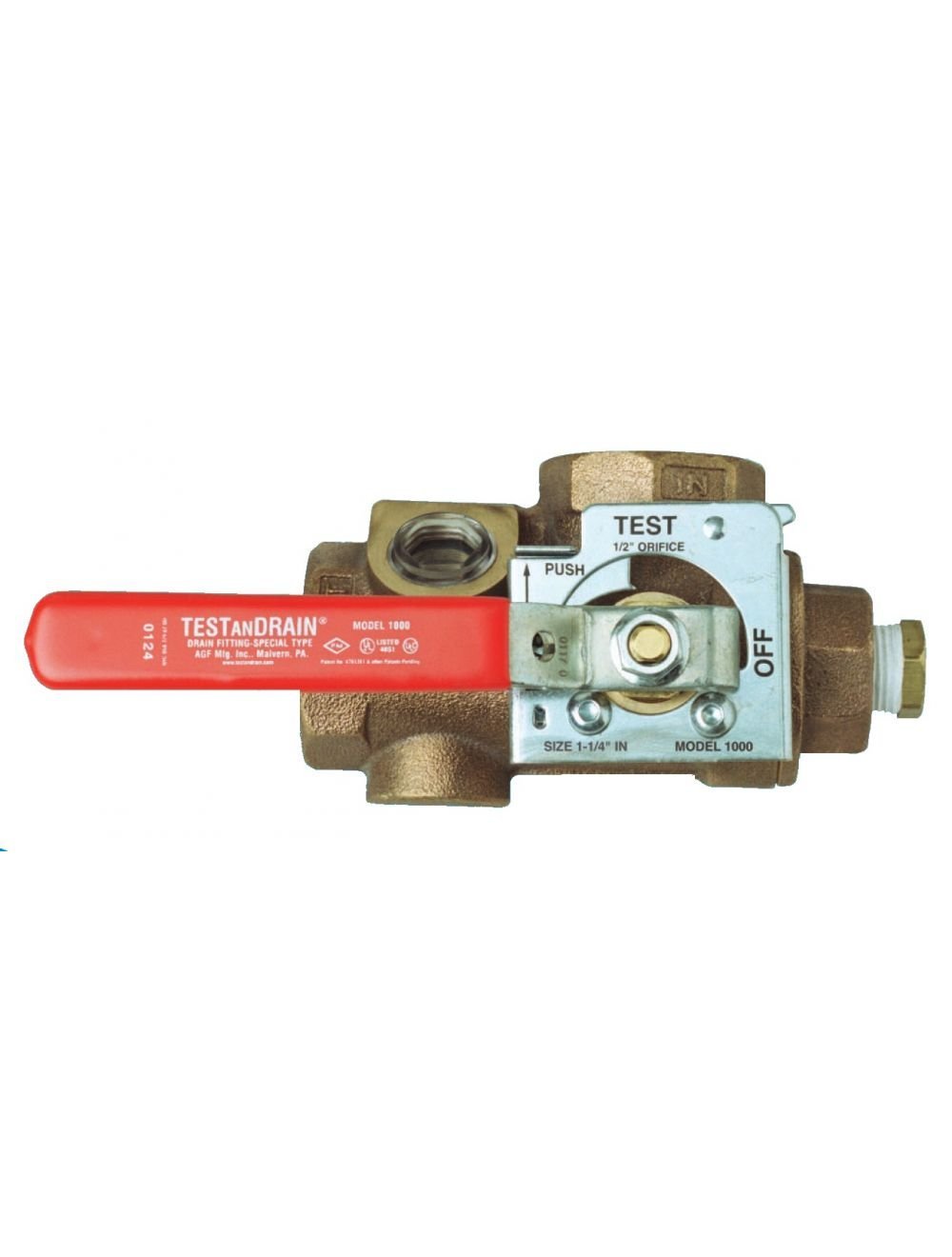

AGF Test and Drain Valve, Threaded ends, Model 1000
