| Product Code | Valve, V-316 Series |
|---|---|
| Actuation | Solenoid-Pilot | Spring Return |
| Function | 3-way, 2-pos, NC |
| Port Size | Body Ported, 1/2″ NPT |
| Valve Pressure Range (PSI) | VAC-200 psi |
| Valve Pressure Range (BAR) | VAC-13.8 bar |
| Primary Flow | 5.5 Cv |
| Media | Air – Inert Gas, Natural Gas |
| Pilot Pressure Range (PSI) | 40-120 psi |
| Pilot Pressure Range (BAR) | 2.76-8.27 bar |
| Gas Temperature Range (F) | -4°F to 194°F |
| Gas Temperature Range (C) | -20°C to 90°C |
| Dust Temperature Range (F) | -4°F to 194°F |
| Dust Temperature Range (C) | -20°C to 90°C |
| Seal Material | FKM |
| Body & Internal Parts | 316L Stainless Steel |

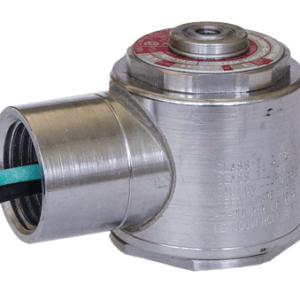

| Solenoid Description | Hazloc- E5 Class |
|---|---|
| Voltage | 24 V DC ±10% (D024) |
| Power | 1.8 W |
| Inrush Current | 77 |
| Holding Current | 77 |
| Resistance | 312 |
| Ingress Protection Rating | NEMA 4X |
| Electrical Protection | NA |
| Area Classification | Cl I, Grps C,D – Cl II, Grps E,F,G – Cl I, Div 2, Grps A,B,C,D – Cl II, Div 2, Grps E,F,G |
| T Rating (Gas) | 4 |
| T Rating (Dust) | 4 |
| Solenoid Housing Material | Enhanced Corrosion Resistant Stainless Steel |
| Solenoid Seal Material | FKM |
| Solenoid Connection | 1/2″ NPT female conduit with 24″ wires |
| Certification | cULus |
Datasheets and drawings will be on request
Lead time: 14 Days
Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

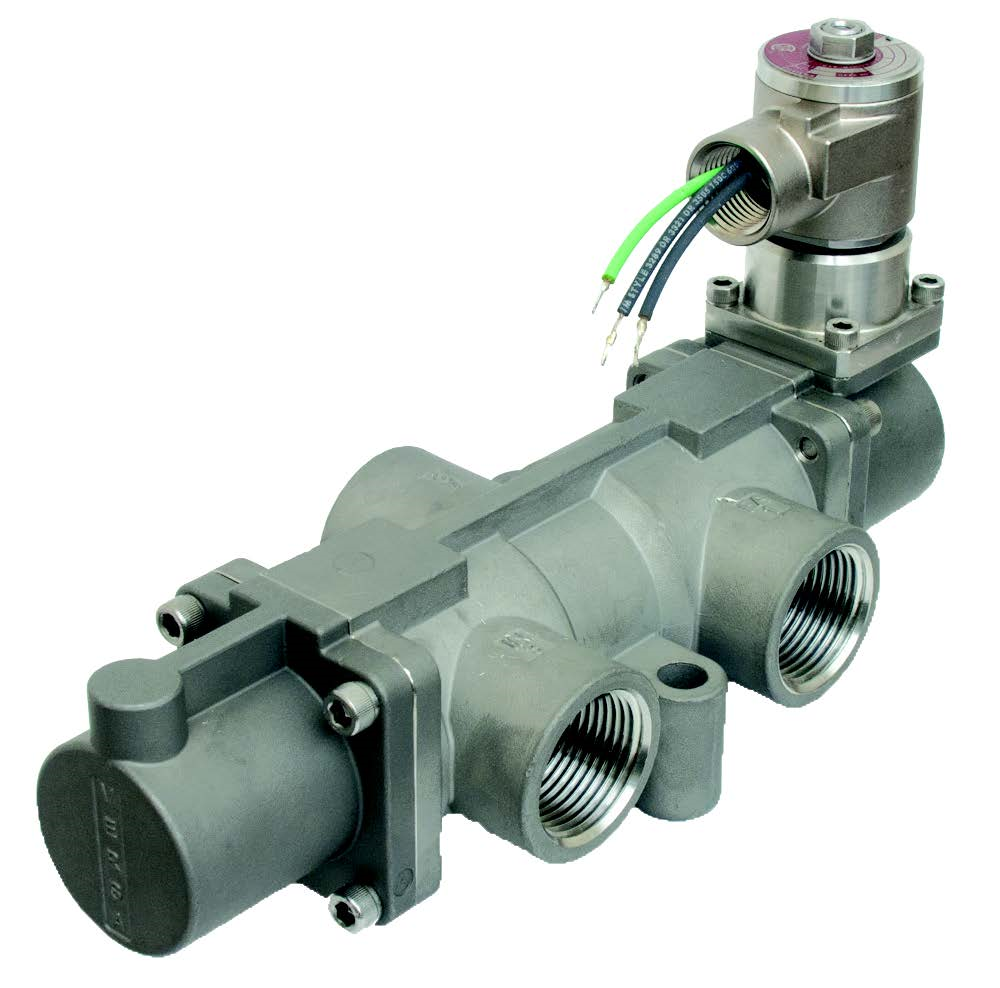

3 Way valve; Versa VSG-3501-316
د.إ925.00
35 people are viewing this product right now
SKU: VSG-3501-316-HT-XXJ-D024
Lead time: 10
Valve, 3-Way, SST, 24VDC
